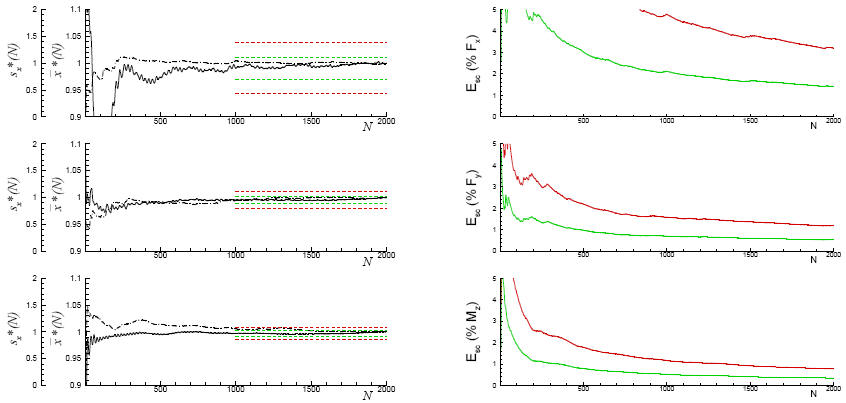

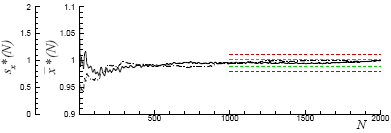

Running mean and standard deviation:

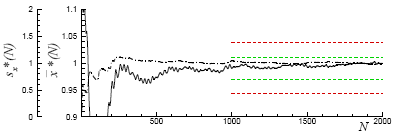

Fx

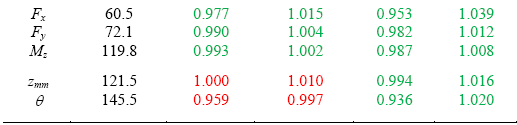

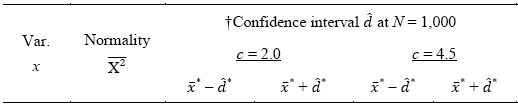

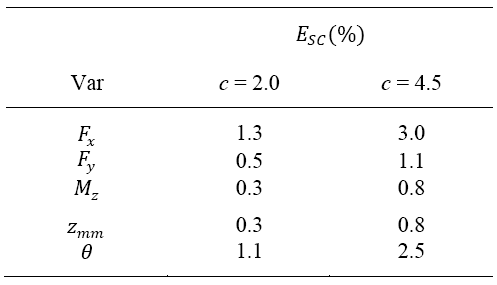

  • Confidence interval:




  • For Fx, Fy, and Mz, the confidence interval evaluated at N = 1,000 (dashed lines in the figures) well include the future x values up to N = 2,000 even with c = 2.0.

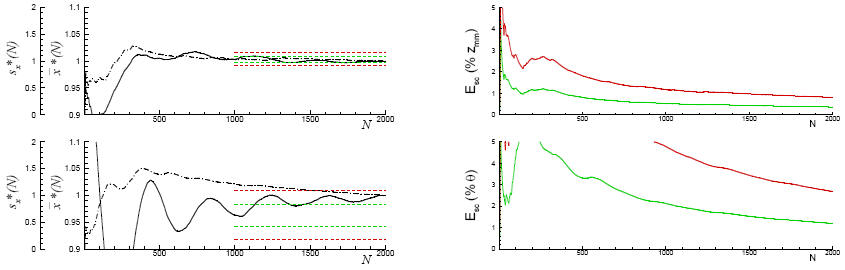

  • For zmm and θ, the confidence interval evaluated at N = 1,000 using c = 4.5 contains the future x, but do not when c = 2.0 is used.


Fy

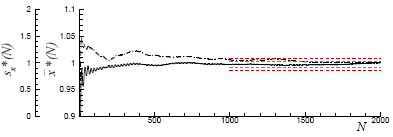

Mz

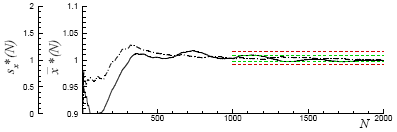

zmm

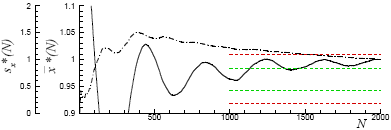

θ

Next









































Forces and moment and motions data are:




Return





































Forces and moment data



Motions data
